• Spinel Powder Synonyms:

spinel powder, ruby spinel powder, ruby powder, MgAll2O4, Spinel ore, MgOAl2O3, Magnesium aluminum oxide powder, crystal, CAS# 12068-51-8

• Spinel Powder Designations:

Chemical Name: Spinel

Chemical Formula: MgAll2O4, MgAl2O4 (MgO-Al2O3)

• Spinel Powder Description:

Spinel is a mineral composed of magnesium aluminate. It crystallizes in the isometric system, usually in hexahedral crystals with a vitreous luster. Various amounts of impurities, such as iron, manganese, and chromium, impart different colors to the mineral, including red, lavender, blue, green, brown, or black. Spinel is found in Sri Lanka, Madagascar, and the United States.

• Spinel Powder Source:

Spinel Group. Spinel-Hercynite Series, Gahnite-Spinel Series, and the Magnesiochromite-Spinel Series.

• Spinel Powder Physical Sizes Available:

1. Pieces
2. Granules
3. Powder
4. Additive Grade: (D90=<5 um, D50= <3 um & D10= <1 um)

• Spinel Powder Physical Constants:

Molecular Weight (g/mol.)	142.27
Apparent Density (g/cm3)
Average Density (g/cm3)	3.64
Melting Point (°C)
Boiling Point (°C)
Surface Area (m2/g)
Thermal Conductivity (cal/s-cm-°C)
Mohs Hardness @20°C	8
Specific Gravity (g/cc)	3.5 to 4.1
Tenacity	Brittle
Color	Black, blue, red, violet ...

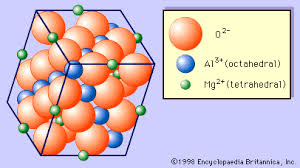

Crystallography	Hexahedral

• Spinel Powder Typical Applications:

Electronics, composites, pigments. "Ruby spinel" is a semi-precious gemstone.

• Spinel Powder Packaging:

Jars, pails, drums, multiply paper bags, bulk bags and fiberboard containers. For further information on packaging options contact READE

• Spinel Powder TSCA (SARA Title III) Status:

1) Not Listed. "CERCLA, Section 304: This product does not contain ingredients subject to state and local reporting under Section 304 of SARA Title III as listed in 40 CFR Part 302, Table 302"

2) For further information please call the E.P.A. at +1.202.554.1404

•  Spinel Powder CAS Number:

CAS# 12068-51-8
